STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless Communication

Product Categories
Zhuhai Huiyue Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless Communication

Brand Name : HUIYUE

MOQ : 1000

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 10000

Delivery Time : 4weeks

Standard : STS Standard

Input : IC Card

Pulse Output : No

Application : Civil

Batterylife : 5 to 10 years

Size : 2 inches

Keyword : RS485,MODBUS,MBUS

Max Reading : 99999m³

Accuracy Class : A, B

Flow Range : 0.5-50 m³/h

Working Current : ≤ 10mA

Hot Water Meter : 0-90 ℃

Communication Technology : Wireless

Measurementtype : Volumetric

Flow Turndown : (Q3/Q1): 80

Contact Now

HUIYUE Smart Split Keypad Water Meter is composed of a Class C prepaid Multi-jet water meter and a separate customer interface unit (CI U) with RF wireless communication module.

Application:

Measuring the volume of cold water through water pipe.

Compliance with Standard

* ISO 9001 ; ISO 14001

* STS Certificated

Metrological Parameters of different size

Size

DN15 1/2”

DN20 3/4”

DN25 1”

Overload flow rate Q4

3.125

5.0

7.875

Permanent flow rate Q3

2.5

4.0

6.3

Transitional flow rate Q2

0.025

0.040

0.063

Minimum flow rate Q1

0.0156

0.025

0.0393

Ratio ”R” Q3/Q1

160

160

160


Features

* Maximum working pressure: 16 Bar

* Maximum pressure loss: 0.6 Bar

* Maximum reading: 99999

* Working temperature: < 50 ℃

* Error: Q1≤Q≤Q2 5%;

Q2≤Q ＜Q4 2%

STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless Communication

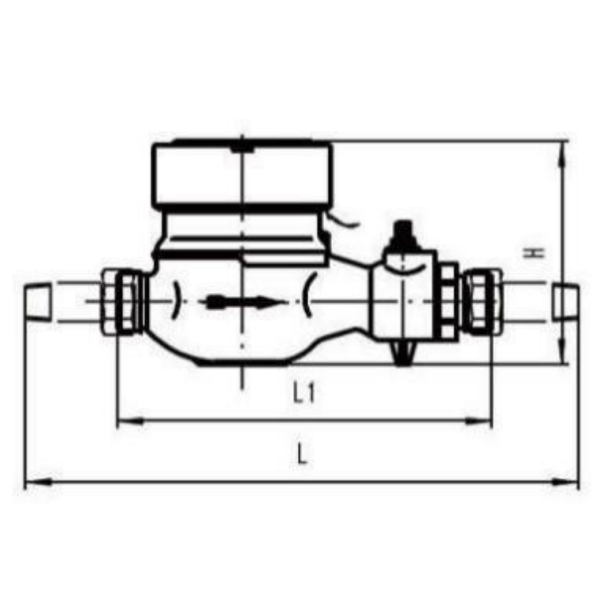

Meter Dimension

Size

DN15 1/2”

DN20 3/4”

DN25 1”

Length(L)

165/190

190

225/260

Width(W)

99

99

103

Height(H)

104

106

114

Connecting Thread

G3/4B

G1B

G1-1/4B



STS Prepaid Smart Water Meter with Remote Opening/Closing, 5 to 10 Years Battery Life, and Wireless CommunicationHow to recharge by AMI System?
